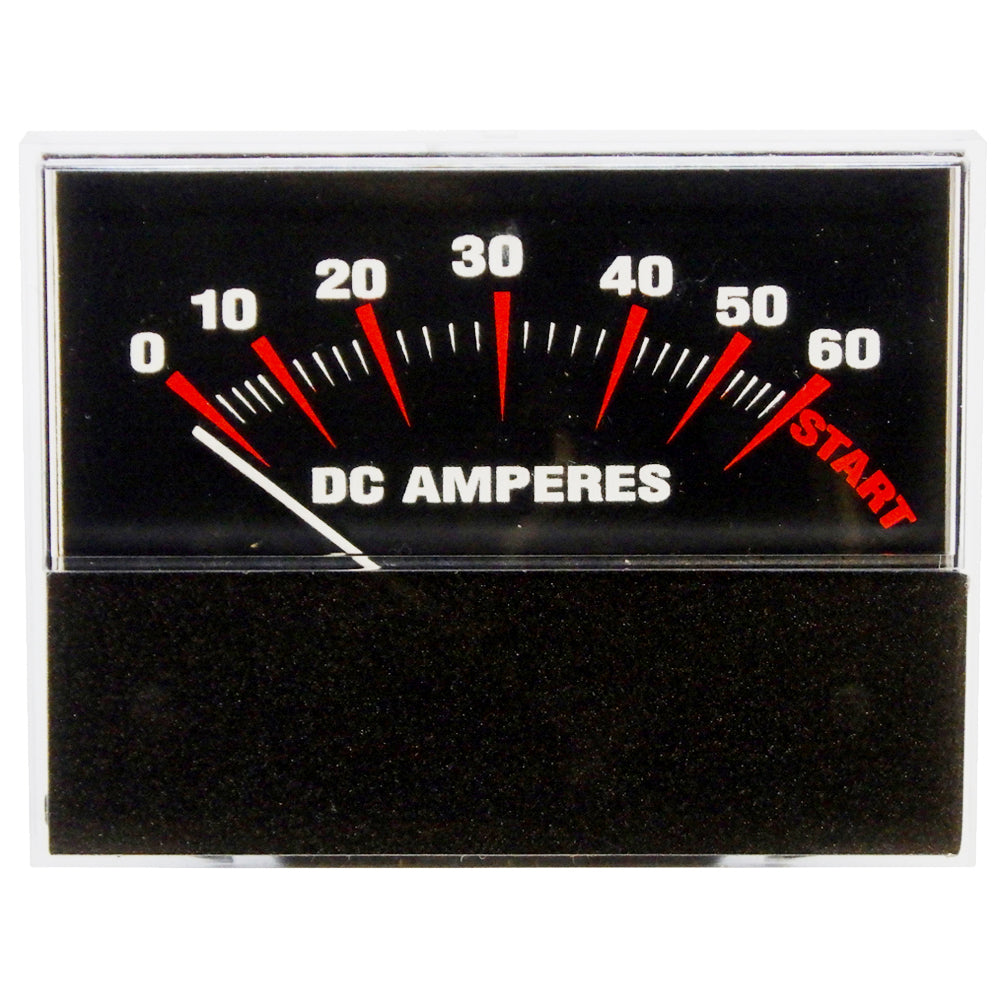

PR96-60B - Amp Meter 0-60A w/Boost Snap-In w/Inductive Pick-Up for Battery Chargers

SKU PR96-60B
$29.85
 More payment options

Notify me when back in stock

Description

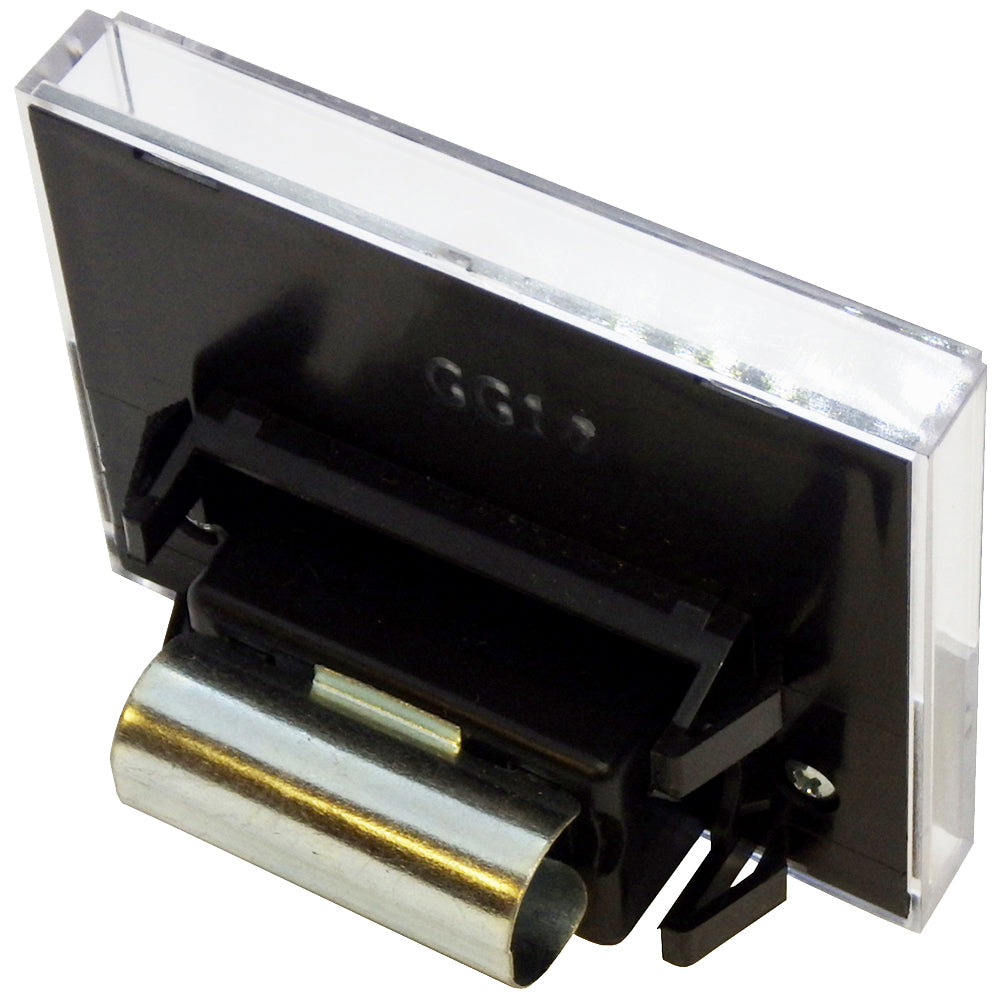

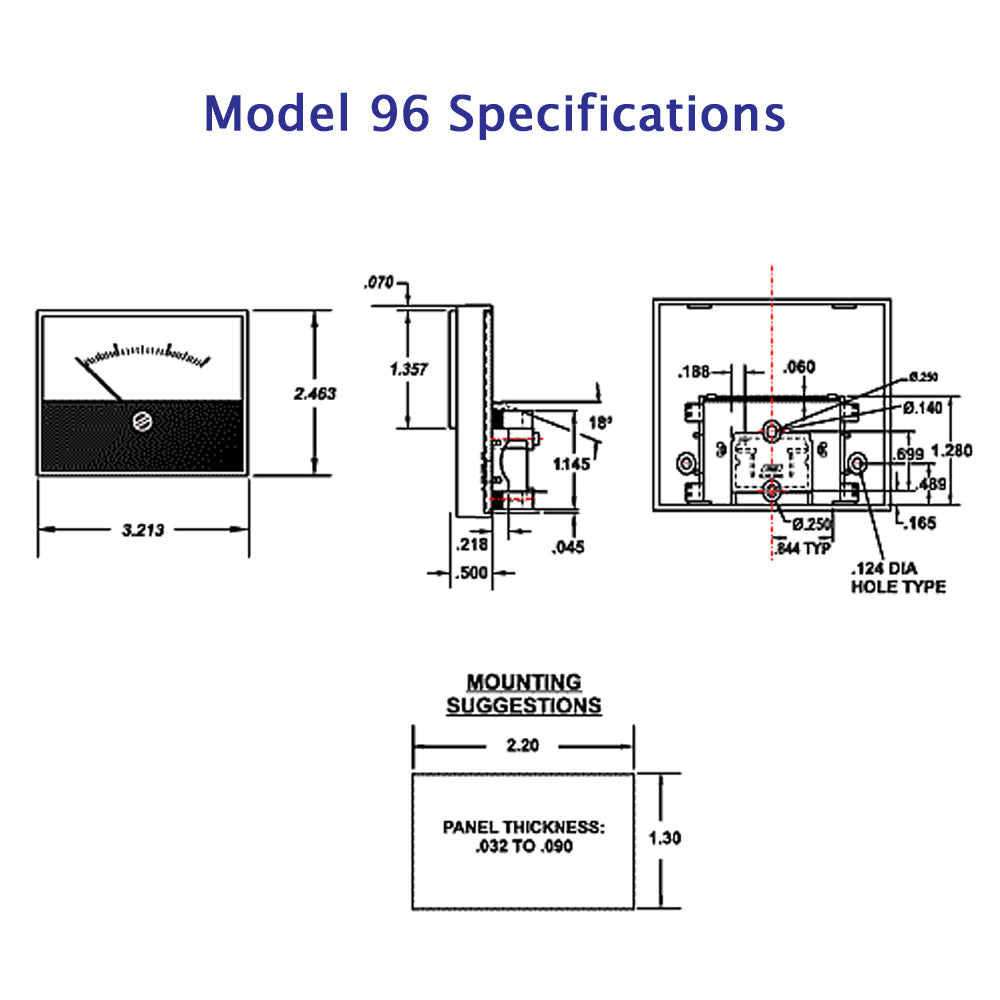

Original Replacement for various Schumacher and other chargers. Inductive pickup, no meter connections required. Snap-in mount to charger panel. This meter may be fitted in any battery charger with a 1.3"H x 2.15"W mounting hole in the panel. Check width for clearance. Direct Replacement for Schumacher meter 5399-100-146.

Fitment Note: Bezel is significantly larger than mounting hole.

Also replaces these OEM amp meters:

Schumacher 5399-100-146 (60A w/Boost) Direct Replacement
Schumacher 5399-100-149 (50A w/Boost)
Schumacher 5399-100-147 (40A w/Boost)

Note: Product Number changed 2/15/2024. Old number PR21S-60B.

Features
Specifications
Shipping & Returns

Customer Reviews

Based on 2 reviews
50%
(1)
0%
(0)
50%
(1)
0%
(0)
0%
(0)
H
Harold P.
It works.. Kind of

The meter works once you figure out how to route the cable. Static electricity hinders accurate readings. No calibration adjustment screw. Meter has no installation instructions.

Hi Skip,

Thanks for taking the time to leave a review. Sorry you are not 100% satisfied with the amp meter, but all of our meters are built to the OEM specifications of the original charger manufacturers by the same company that has been supplying the vast majority of them for decades. In the interest of complete transparency, this means the meters are necessarily a balancing act between features and cost, and they work like OEM meters because, well... they ARE OEM meters.

We have not had many requests for meter installation instructions, but it may not be a bad idea, and someting we will strongly consider. Thanks again for choosing PLPBattery.com!

A
Aaron M.
Good service

Everything was great
