JAC2024H-PS - Schauer 24V, 20A Power Supply & Intelligent Electronic Charger with Float/Maintenance Mode - Includes Choice of DC Connector

SKU JAC2024H-PS
Sale
Original Price $355.00
Current Price $319.00
Select Charging Connector
 More payment options

Notify me when back in stock

Description

Model JAC2024H-PS (0891-76)

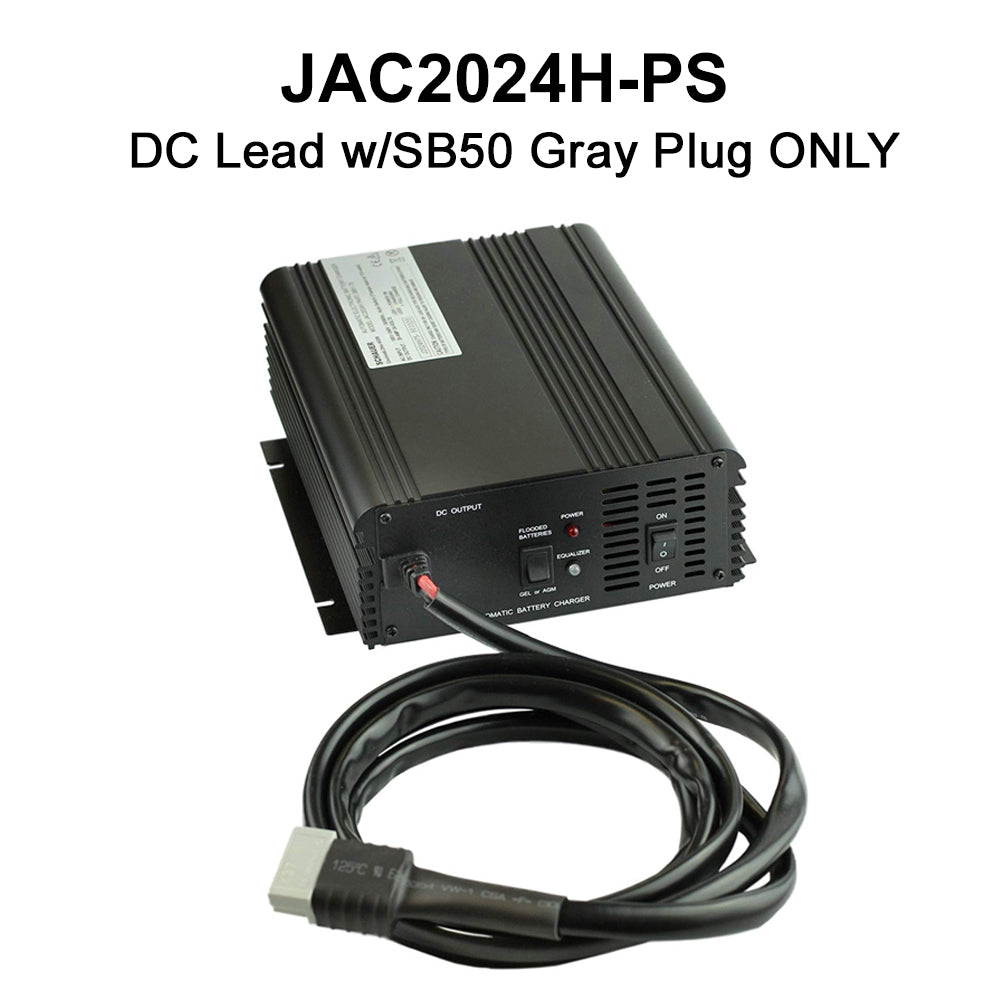

The Schauer JAC2024H-PS is both a 24V Power Supply and a Fully Automatic, 3-Stage Electronic Charger with a gray SB50 connector on the 96" DC Lead. Multiple DC Adapters are available to fit various applications. This Intelligent Charger may be left connected to the battery indefinitely, keeping it safely charged without danger of overcharging.

Note: This is a Power Supply version of the JAC2024H. Unlike the standard JAC2024H, this unit will supply 24V DC output without any voltage sensed at the DC leads.

The JAC2024H-PS will charge any type lead acid battery, including conventional flooded cell, maintenance free, deep cycle, gelled-electrolyte, or AGM valve regulated batteries. The 3-Stage Charge Control provides Modified Constant Current Charge to a constant finishing voltage, then to a float/standby voltage to maintain the battery in a fully charged condition.

The JAC2024H-PS features a heavy-duty aluminum case with mounting flanges, and is suitable for on-board mounting in various industrial equipment. The charger automatically detects AC input voltage and operates on either 115V or 230V without user intervention. Supplied with a 72" grounded North America AC input cord equipped with IEC C13 plug for connection at the charger. For international use, simply replace with an AC cord equipped with a locality-appropriate mains power plug and IEC C13 connector.

ORDERING NOTE: This charger is equipped with a gray SB-50 connector on the DC Lead. Purchase options include your choice of a 12" Industrial Adapter lead that mates to the SB-50 plug. Select your plug from the choices on the right and note the product picture for your choice before adding the charger to your cart. Note that there are options for the SB50 connector ONLY (no adapter included). There is also an adapter with stripped wire leads, allowing you to attach your own connector, or make a permanent connection, while allowing the flexibility of disconnection at the SB50.
